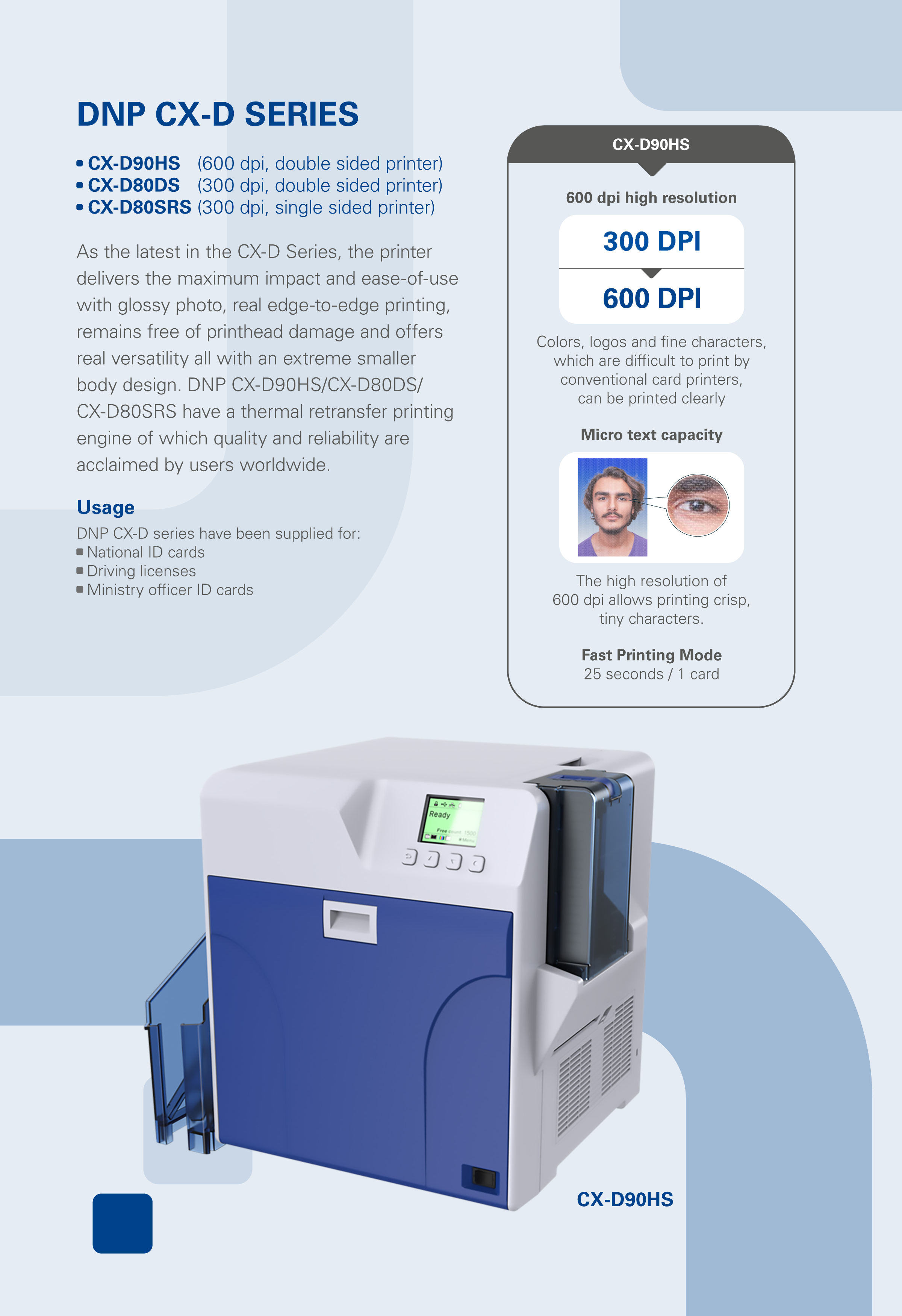

DNP CX-D90HS Card Printer

The DNP CX-D90HS Card Printer (often referred to as CX-90) is a 600 DPI high-resolution retransfer card printer designed for secure, professional-grade ID and smart card issuance.
90

  • Resolution: 600 dpi
  • Double side

Improvements

  • Offers enhanced printing speed (25 secs for single side with full color)
    without compromising on color fidelity
    (Note: 30 secs for single side with full color by CX-D80 series)
  • Increased card storage capacity (120 cards)
  • Improved cards’ transport mechanism to decrease card’s jam
  • Storage space for small computer
  • Enlarged LCD monitor to improve visibility
  • Easy to check remaining volume for consumables by LCD monitor

Product features

  • Compatible with existing ink-ribbon and re-transfer film
  • Compatible with existing laminator
  • Perfect edge-to-edge printing with glossy photo finish quality
  • Damage-free printhead by retransfer method
  • Ideal for contact/contactless card and PVC card
  • Single or Double side model available
  • Highest capacity YMCK ribbon (1,000 images), less frequency of reloading
  • Electronic (hopper & front door), and Kensington locks installed
  • Smart body & design suitable for every location
  • Intellectual status Monitor Program to see the printer status
  • User-friendly accessories to keep the printer clean
  • Optional laminating module (CL-600S, CL-600D) connectable

Specifications

Printing method Dye sublimation/resin thermal retransfer
Printable area Full-bleed (edge-to-edge)
Print speed 25 sec : YMCK on single side
Interface ・USB2.0(Ver2.0) Full-speed(12Mbps) / Hi-speed(480Mbps)
・10BASE-T/100 BASE-TX Ethernet
Card type PVC, Composite PVC, PET-G, ABS, etc.
Input & output capacity 120 cards each (0.76mm thickness)
Dimension W346 x D322 x H360 (mm)
Weight 13.5kg (Single side with no optional unit)
Power supply Maximum 3A (100 to 120V), Maximum 1.5A (220 to 240V)
Operating environment 15℃ – 30℃, 35% – 70% non condensing humidity
Ink ribbon YMCK, YMCKK, YMCKUv, YMCKPo
Options Magnetic stripe encoding, Contact chip encoding, Contactless IC encoding, Bend remedy unit, Lamination unit(CL-600S/CL-600D)
Safety standard/regulation FCC, CE, UL, VCCI-B, FCC Class B, EN Class B, RoHS, CCC
